Internal Grinding Machines

Internal Grinding Machines
Internal Grinding Machines
Product Code : BMW 150X300 MM
Price And Quantity
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 475000 - 1500000 INR
Product Description

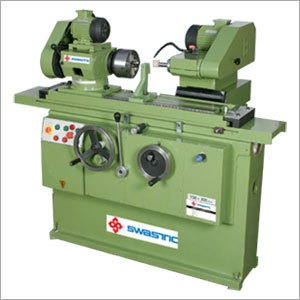

Internal Grinding Machines

We are an illustrious manufacturer, exporter and supplier of highly efficient Internal Grinding Machine. It is manufactured using premium grade parts and advanced technology as per the set industry norms. Due to the features like long service life, sturdiness, excellent efficiency, low maintenance and smooth operation, the offered machine is highly demanded in the market. Offered Internal Grinding Machine is used for grinding purpose and is available at cost-effective prices.

Use:

These grinding machines are used for grinding, cutting and sharpening internal side of metal components with the help of abrasive process. The offered grinding machines are suitable for giving perfect shape and size to the various components made with Steel, Brass or any other material. These grinding machines are broadly used in electrical, automobile, automotive, industrial, etc.

Machine Body:

It is integrated in single body with specific cast iron, perfectly dimensioned and strengthened internally with the stiffened rib. Here the sturdiness and weight ensure maximum stability to the machine. Its single-piece design provides excellent, vibration free work. The slides, one flat and one prismatic, are well dimensioned rod ground for complete working position.

Work Head:

Alloy-steel spindle hardened and ground turns on precision-class bearing. It is without gearing, and only on belt offers smooth transmission. The speed range is easily acquired by changing the belt. Also, there is facility to achieve desired speed. The spindle can be locked for center grinding, and can also be transformed into live spindle for collet / chuck work. Lower base of head stock is progressive from 0 to 45 degree, either side for angular job-work.

Wheel Head:

The wheel head has a rigid spindle, and designed to achieve excellent surface finish, high accuracy and better RA value. Also, the wheel head provides coveted results as per customer's requirement. It can be swilled 45 degree, either side.



Technical Specifications:

Capacity



Standard
Distance between work spindle nose to grinding spindle nose 300 450/600/800
Height of centre 150
Max. Grinding length 125
Min. Bore dia (with standard spindle other size on request) 30
Max. Swing dia (Larger swing dia available on request) 210

Workhead


Standard Long Bed
Longitudinal displacment 300 450/600/800
Swivel 45o
Speed range rpm-290, 440, 625 (A.C. Variable drive on request) 3 steps

Grinding Wheel Spindle

Cross slide travel 80
Top Slide adjustment 180
Spindle speed -standrad - 60mm spindle 16000rpm
80mm spindle 14000rpm
Spindle housing bore 80
Spindle sleeve I.D. 60 mm - 80 mm O.D.

Table Feed

Minimum stroke 10
Feed rate 30 - 1500
Swivel -3o + 6o

Electricals

Work Head 0.37K.W. 0.5 H.P. 1400 rpm ---
Internal Head 1.50 K.W. 2.0 H.P. 2800 rpm 3 PH
Hydraulic System 0.75 K.W. 1.0 H.P. 1400 rpm 415 V
Coolant Pump 0.10 K.W. 0.15 H.P. 2800 rpm ---

Accessories

Optional accessories

  • Drop down internal grinding attachment
  • Rapid approac
  • Wheel balancing stand
  • Wheel balancing arbor
  • Two point steady rest
  • Three point steady rest
  • Angular dressing attachment
  • Radius dressing attachment
  • Universal wheel head
  • Hydraulic copying dressing attachment
  • Tursite coating for wheel head slide.
  • Magnetic separator

Standard accessories

  • Plain dead center MT3
  • Plain dead center MT4
  • Allen key set
  • Fix spanner set
  • Fix dresser with diamond
  • Grinding wheel with flange
  • Complete electrical with motor
  • Coolant fittings, coolant pump with tank
  • Through chuck flange
  • Grinding wheel flange puller.
